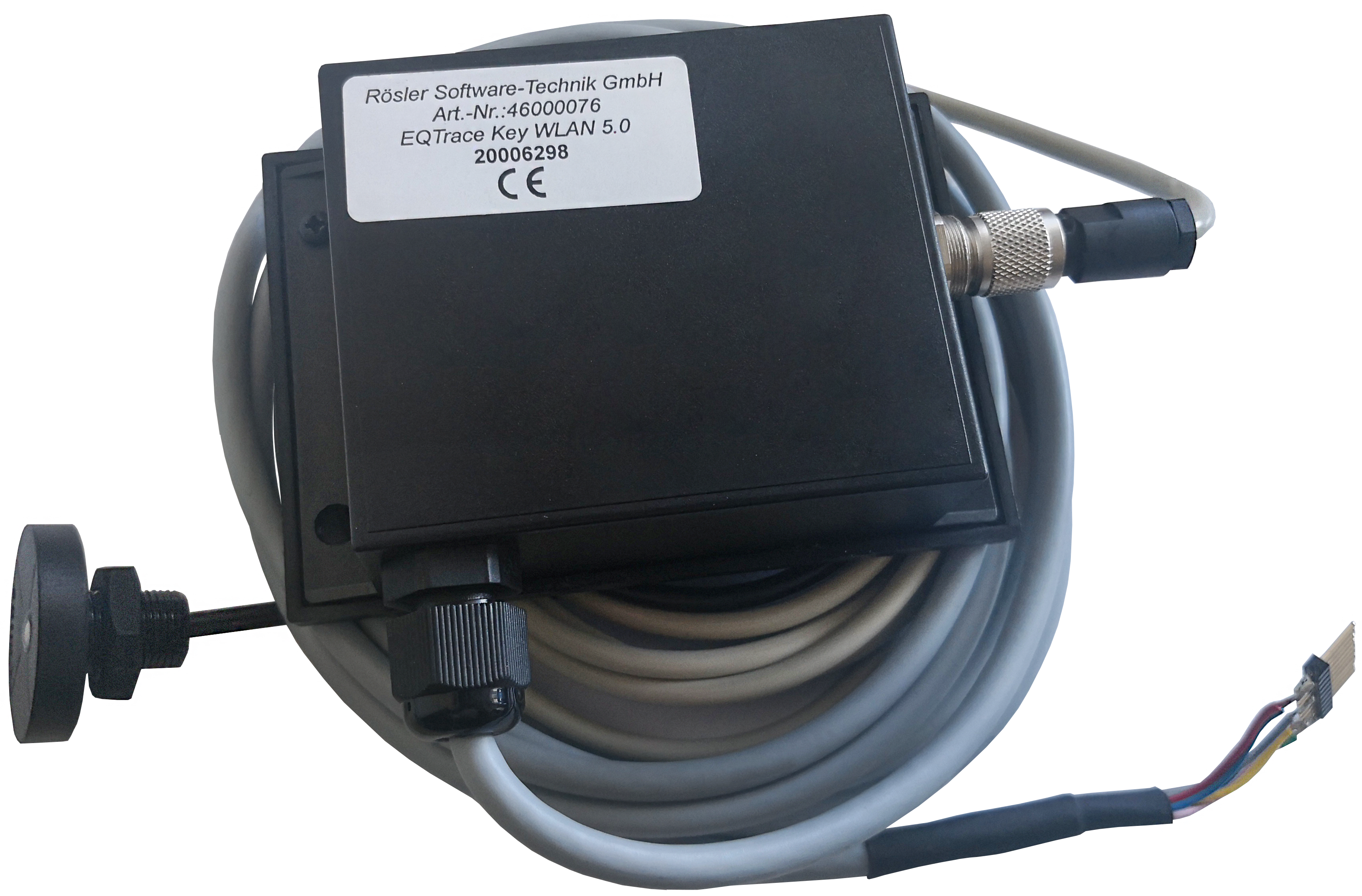

EQTrace key WLAN
The perfect access control system for industrial trucks
Usage time recording by employee / department / order / cost center
Record and settle usage times
Periodic transfer of collected data
Users and usage time can be called up via smartphone or Obserwando.de
No Flat per device, therefore very low monthly costs
Personal keys ensure damagefree operation
Adjustable shock clamp to shut down the machine in the event of a collision (material, shelves, etc.)
Vehicle users can be queried/expanded/blocked via the Internet
Possible uses:
Wherever forklifts are in use.
Access control system:
Access control via RFiD-card / keychain / app
Access control: It is possible to specify operating times
Device use only after key registration
Unique user through personal keys
Registration is only possible if the previous user has logged out
Automatic logout by switching off the machine
Recording of operating times:
Optimize:
Your device inventory
Your service
Your operating hours
Your billing by department or order
Power saving mode:
Machine switched off -> minimal power consumption of the GPS tracker through energy saving mode
Theft and misuse protection: Continuous monitoring of the forklift’s movement within the set time range, even in energy saving mode.
Technical Data:
Inputs: 4 (Analog input for measuring the operating voltage)
Outputs: 2
Operating voltage: Supply via vehicle battery 10VDC – 60VDC (expandable to 150VDC)
Protection: IP66
Temperature range: +70°C / -20°C
Housing dimensions: L*B*H (mm) = 105 * 73 * 35
